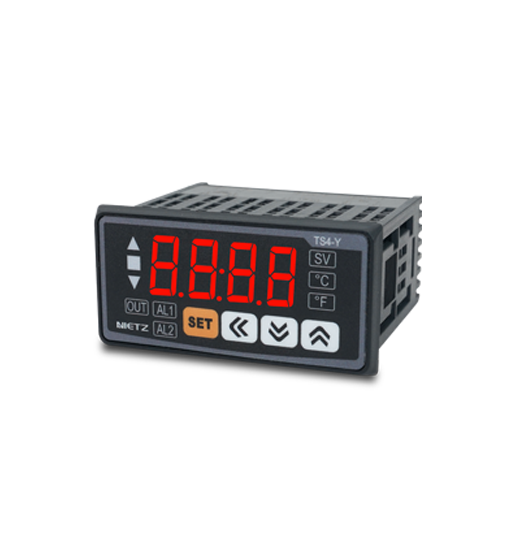

Product Name：Temperature controller TS4-Y
Category：Sensor, Meter, Controller & Instrumets
By adopting the newly developed PID control algorithm and 100ms high-speed sampling function, ideal temperature control can be achieved.
► USER MANUAL
|
|
|
|
|
- Features
- Application
- Download
-
Features
- Simultaneously built-in Relay output and SSR output.
- Universal input K, J, L, Cu50, PT100; 2 chanel Alarm
- Adopting a small-sized display screen and compact design, saving installation space. 38% reduction compared to traditional products.
- Temperature setting SV as the reference, displaying the deviation function of the current temperature PV.
|
Series
|
TS4-Y
|
|
Supply Voltage
|
100-240 VAC 50/60Hz
|
|
Allowable Voltage Variation Range
|
90-110% of the power supply voltage
|
|
Power Consumption
|
AC ≤5 VA
|
|
Sampling Period
|
100 ms
|
|
Enter Specifications
|
Refer to " Input specification and Scope of Use"
|
|
Control Output
|
Relay
|
250 VAC 3A, 30 VDC 3A, 1a
|
|
SSR
|
12 VDC +/-2V, ≤20mA
|
|
Alarm In
|
250 VAC 1A 1a
|
|
Display Mode
|
7-segment ( red, green, yellow), LED mode
|
|
Control Mode
|
Heating & Cooling
|
ON/OFF, P, PI, PD, PID
|
|
Lag
|
1 to 100 （0.1 to 50 50.0) ℃/℉
|
|
Proportional Bandwidth (P)
|
0.1 to 999.9 ℃/℉
|
|
Integral Time (I)
|
0 to 9999 sec
|
|
Derivative Time (D)
|
0 to 9999 sec
|
|
Control Cycle (T)
|
0.5 to 120.0 sec
|
|
Manual Reset Value
|
0.0 to 100%
|
|
Relay Lifespan
|
Mechinery
|
Out 1/2, AL1/2: ≥5 milliion times
|
|
Electrical
|
Out 1/2, ≥200 000 times (resistive load: 250 VAC, 3A)
AL 1/2, ≥300 000 times (resistive load: 250 VAC, 1A)
|
|
Withstanding Voltage
|
Betwenn the charging unit & the casing: 1000 VAC 50/60 Hz 1 min
|
|
Vibration
|
5-55 Hz amplitude 0.75 mm X, Y, Z direction 2 hours
|
-
Application
For assembly line machines (such as nuclear control, medical device production, ships, automotive industry, food processing machinery, plastic machinery, etc.)
-
|
|
|
|
|
|
