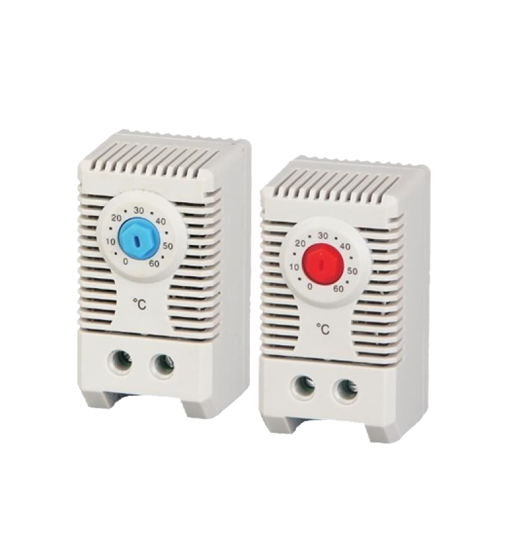

Product Name：Thermostat Compact
Category：Sensor, Meter, Controller & Instrumets
Normally open contact: It is commonly used to monitor the fan filter, heat exchanger or close the circuit to output signals when the thermostats exceeds the set value
Normally closed contact: It is often used to connect the heater and disconnect the circuit when the thermostats reaches the set value. The heater and refrigeration equipment can be switched independently to avoid thermostats deviation caused by traditional switching.
► BROCHURE
|
|
|
|
|
- Features
- Application
- Download
-
| Switch temperature difference |
7K (± 4K tolerance) |
| Sensor element |
thermostatic bimetal |
| Contact type |
snap-action contact |
| Contact resistance |
<10mΩ |
| Service life |
> 100,000 cycles |
| Max. Switching capacity |
250VAC, 10 (2) A /120VAC, 15 (2) A / DC 30W |
| Connection |
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2; stranded wire (with wire end ferrule) 1.5mm⊃2; |
| Mounting |
clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
| Casing |
plastic according to UL94 V-0, light grey |
| Dimensions |
60 x 33 x 43mm |
| Weight |
approx. 40g |
| Fitting position |
variable |
| Operating / Storage temperature |
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) |
| Protection type |
IP20 |
-
-
|
|
|
|
|
|
